⚙️ Air Operated Double Diaphragm Pump Manufacturer, Supplier & Exporter
🏭 ALPHA GLOBAL is a trusted Air Operated Double Diaphragm Pump manufacturer, supplier, and exporter in India, providing reliable pneumatic pumping solutions for chemical transfer, slurry handling, viscous liquids, corrosive fluids, solvents, paints, oils, wastewater, food products, and other demanding industrial applications.
💨 Air Operated Double Diaphragm Pumps, commonly known as AODD Pumps or Pneumatic Diaphragm Pumps, operate using compressed air instead of an electric motor. This makes them suitable for hazardous and explosive environments where electrical equipment can create additional safety concerns.
💧 ALPHA GLOBAL AODD Pumps are designed for self-priming operation, dry running, adjustable flow control, and reliable transfer of corrosive, abrasive, viscous, and shear-sensitive fluids.
🔧 Air Operated Double Diaphragm Pump
⚙️ An Air Operated Double Diaphragm Pump is a positive displacement pneumatic pump that uses compressed air to alternately move two flexible diaphragms. The reciprocating diaphragm movement creates suction and discharge cycles that transfer the liquid through the pump.
💨 Since compressed air is used as the driving force, the pump does not require an electric motor at the pumping unit. This makes AODD Pumps particularly useful for chemical plants, solvent handling, paint industries, pharmaceutical applications, wastewater treatment, mining, food processing, and hazardous-area fluid transfer.
🔄 The pump can also operate without continuous electrical power and can be controlled by regulating the compressed-air supply.
🏭 ALPHA GLOBAL manufactures AODD Pumps in different materials and sizes to suit a wide range of industrial fluid-handling requirements.
🔧 Key Features of Air Operated Double Diaphragm Pump
💨 Compressed-air operated design
⚡ No electrical motor required
🛡️ Suitable for hazardous and explosive environments
🔄 Self-priming operation
💧 Dry-running capability
🧪 Suitable for corrosive chemicals
🪨 Suitable for abrasive and solid-containing fluids
🛢️ Suitable for viscous liquids
🎨 Suitable for paints, varnishes, resins, glues, and adhesives
📊 Adjustable flow through air-flow regulation
💧 Gentle and non-shearing pumping action
📈 Pressure capability up to approximately 7 bar
🔧 Simple pneumatic operating principle
🏗️ Multiple Material of Construction options
🛠️ Suitable for positive suction, self-priming, and submerged installations
🔩 Different diaphragm materials available according to fluid compatibility
🏗️ Material Options for AODD Pump

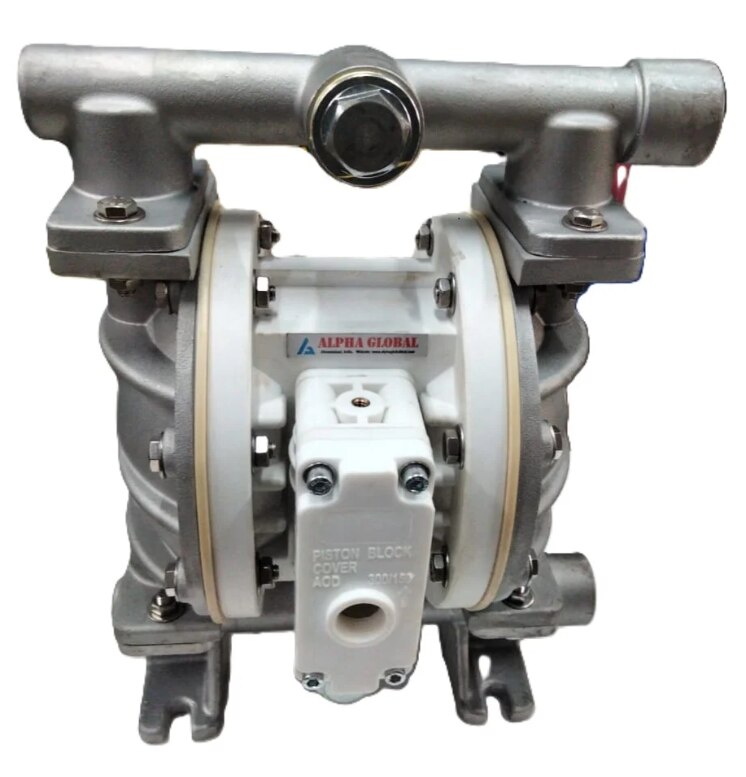

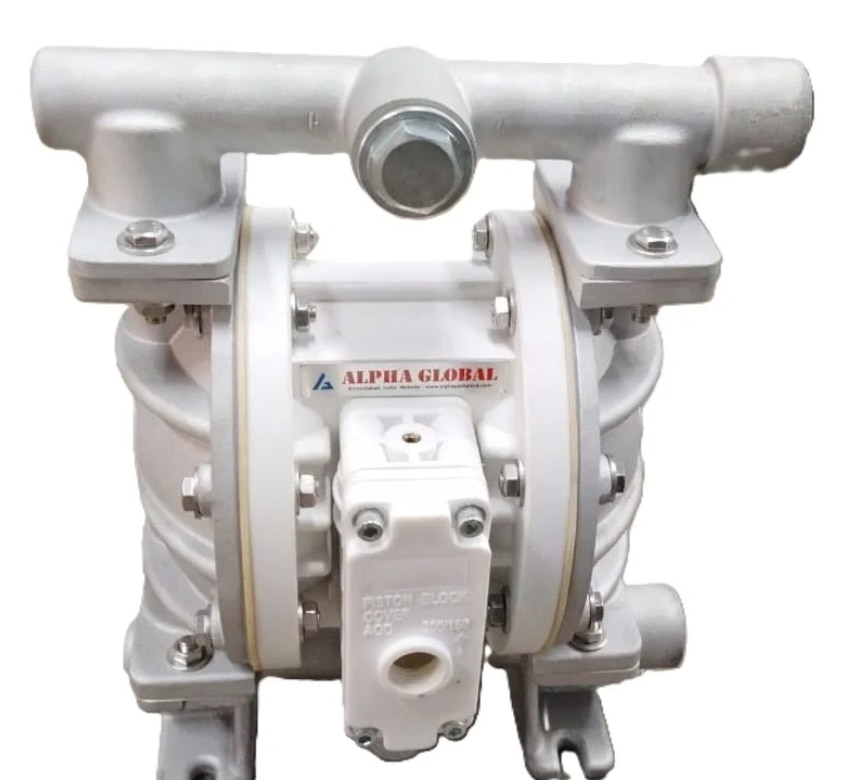

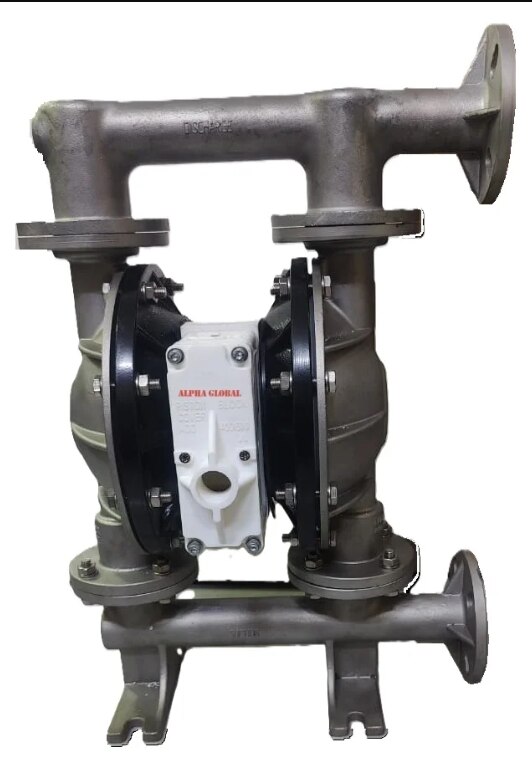

🔩 Stainless Steel AODD Pump
⚙️ Stainless Steel construction, including SS-316/CF8M options, can be selected for applications requiring corrosion resistance and robust industrial performance.

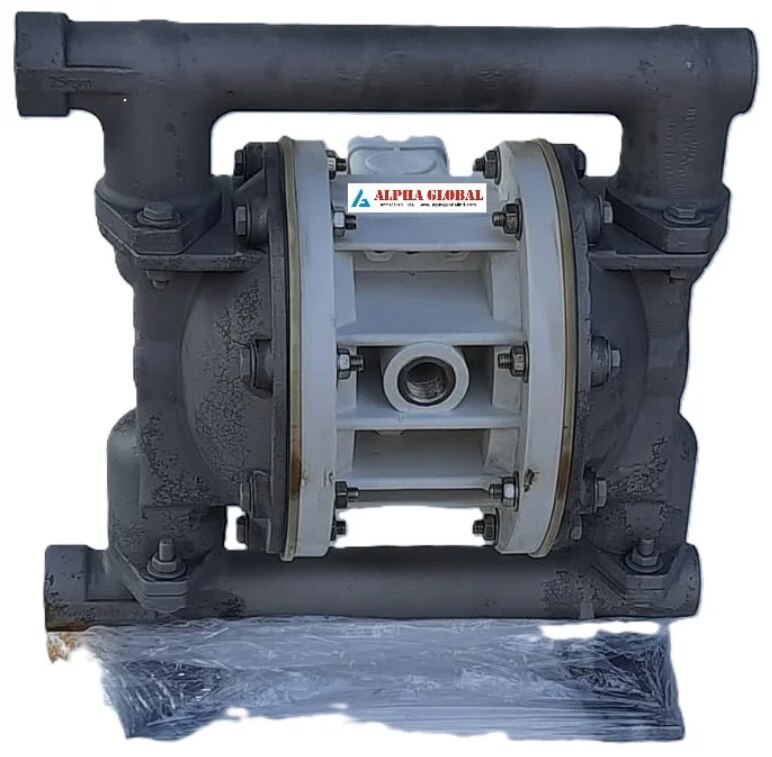

🏗️ Aluminium AODD Pump
💨 Aluminium construction provides a practical and lightweight option for suitable industrial fluid transfer applications.

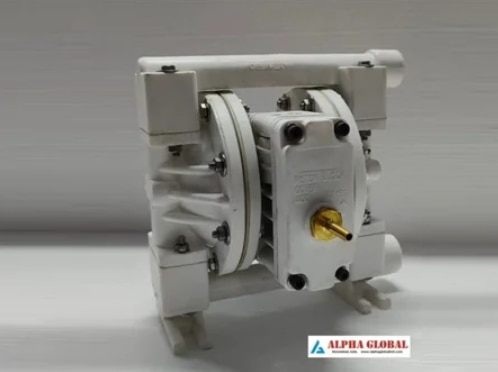

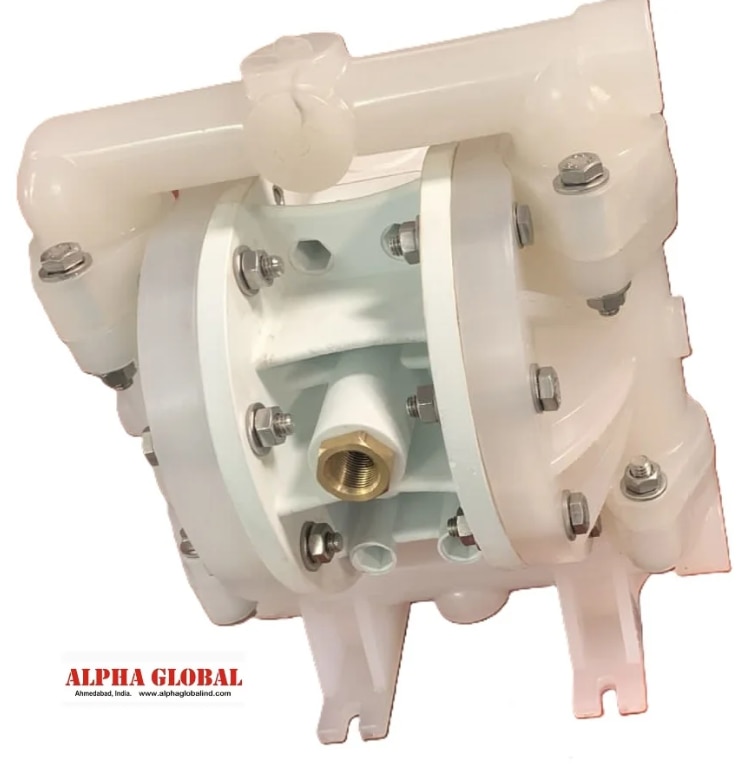

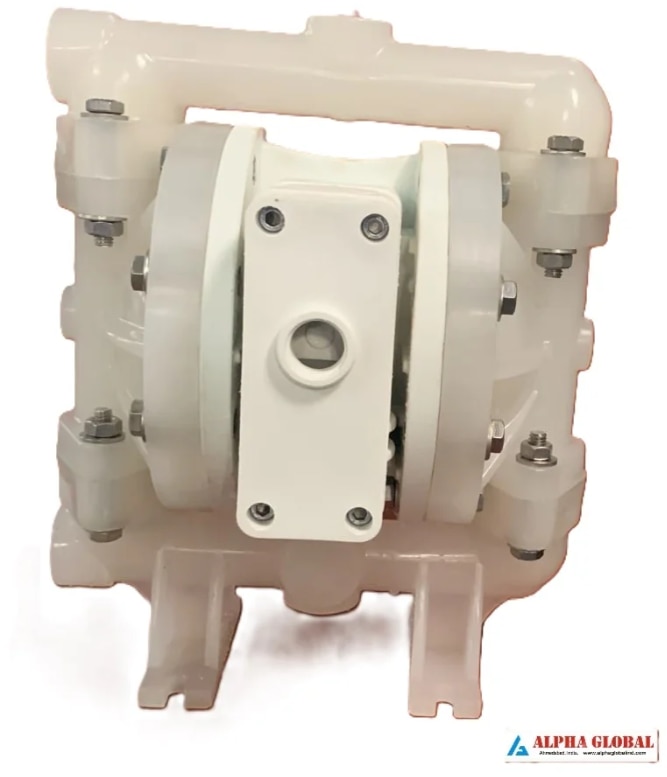

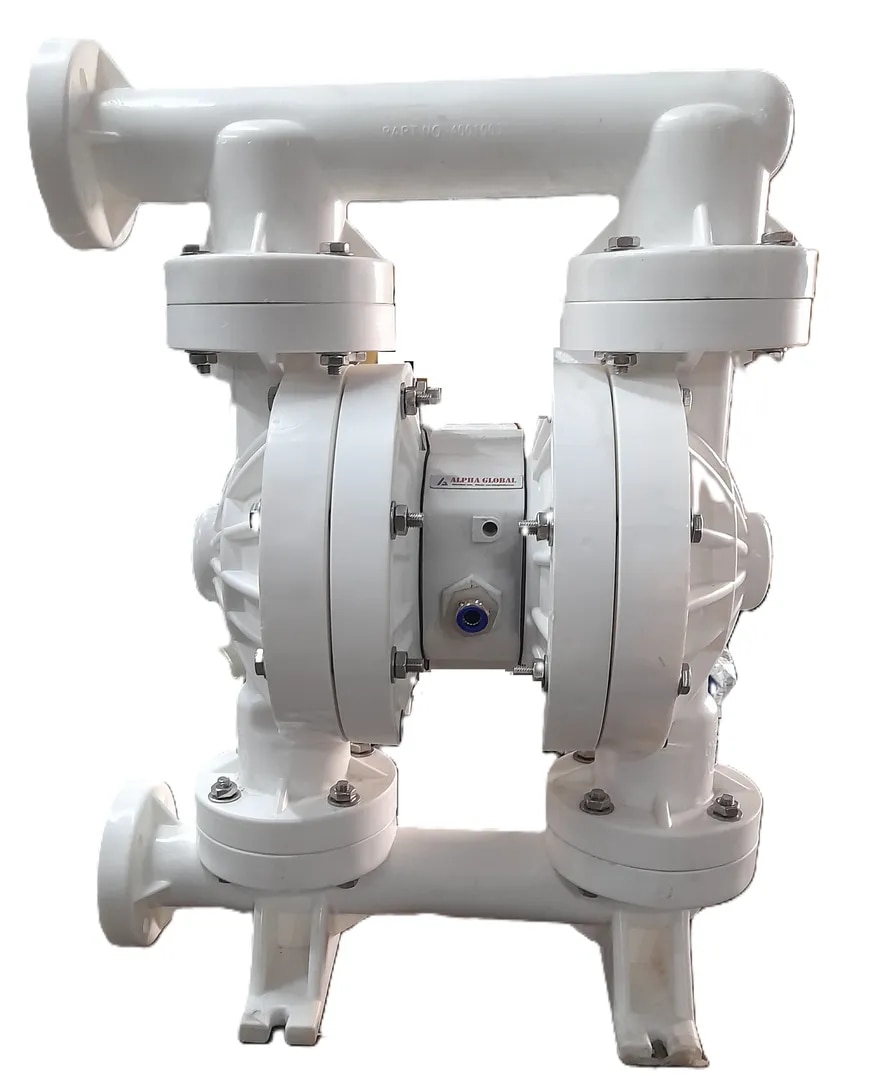

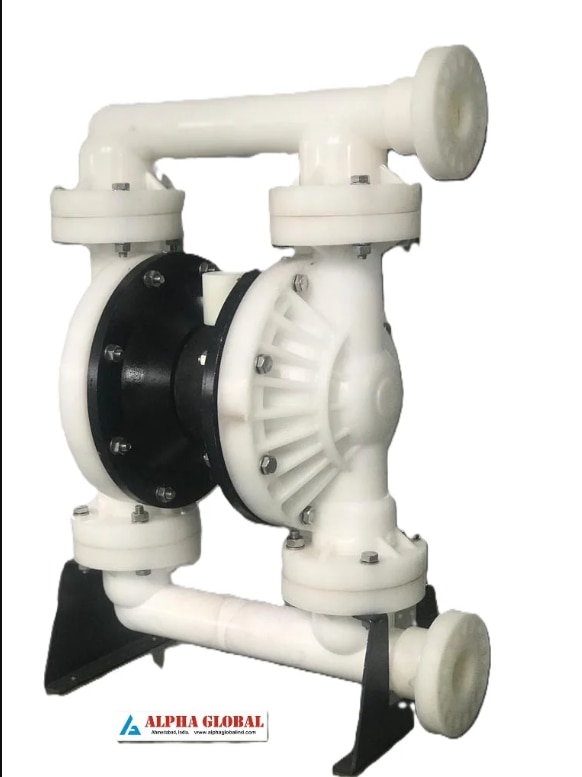

🧪 Polypropylene AODD Pump
💧 PP construction can be considered for compatible corrosive chemicals and process fluids where non-metallic construction is preferred.
⚗️ PVDF AODD Pump
🧪 PVDF construction is suitable for demanding chemical applications requiring high chemical resistance.
🧬 Diaphragm Material Options
🔧 Depending on chemical compatibility and application requirements, diaphragm options can include PTFE/Teflon, Neoprene, Santoprene, and Viton.
📋 Technical Specifications
📏 Port Sizes: Approximately 1/2 inch to 2 inch
💧 Maximum Flow Rate: Up to approximately 586 LPM
📈 Maximum Pressure: Up to approximately 7 bar / 100 psi
🔄 Operating Principle: Pneumatic Double Diaphragm
💨 Drive Medium: Compressed Air
🏗️ Materials: SS-316/CF8M, Aluminium, PP, PVDF
🪨 Maximum Particle Size: Up to approximately 6.35 mm depending on pump size
📏 Dry Suction Lift: Approximately 1.45 m to 4.57 m depending on model
💧 Wet Suction Lift: Approximately 2.83 m to 7.62 m depending on model
📌 Actual flow, suction lift, particle-handling capability, and pressure depend on pump size, diaphragm material, liquid characteristics, air supply, viscosity, temperature, and operating conditions.
⭐ Why Choose ALPHA GLOBAL Air Operated Double Diaphragm Pumps?
🛡️ Safe for Hazardous Environments
💨 Because AODD Pumps are operated using compressed air rather than an electric motor, they can be suitable for hazardous and explosive areas where electrical-drive equipment may not be preferred.
🔄 Self-Priming Capability
💧 AODD Pumps can start pumping from a dry condition and are designed to establish suction without conventional electrical motor-driven priming arrangements.
💨 Dry Running Capability
⚙️ ALPHA GLOBAL AODD Pumps can operate dry without sustaining damage to the pump in suitable operating conditions, providing flexibility for demanding industrial processes.
📊 Adjustable Flow Control
🔧 Flow can be regulated by adjusting the compressed-air supply, allowing operators to control pumping performance according to process requirements.
🧪 Chemical Compatibility
⚗️ Different pump body and diaphragm materials can be selected according to the chemical characteristics of the liquid.
💧 Handles Difficult Fluids
🛢️ AODD technology is suitable for many viscous, abrasive, solid-containing, shear-sensitive, and corrosive liquids.
🌊 Gentle Pumping Action
💧 The diaphragm pumping principle provides a relatively gentle transfer action, making suitable configurations useful for shear-sensitive materials.
🔧 Flexible Installation
🏭 AODD Pumps can be used in self-priming, positive suction, or submerged installation arrangements according to application requirements.
🏭 Applications of Air Operated Double Diaphragm Pump
🧪 Chemical Industries
⚗️ AODD Pumps are suitable for transferring compatible acids, caustics, solvents, chemicals, and other aggressive process fluids.
🪨 Slurry and High-Viscosity Fluid Handling
💧 The positive displacement pumping principle makes suitable AODD configurations useful for slurries, thick liquids, and fluids containing suspended solids.
🎨 Paint and Coating Industries
🖌️ AODD Pumps can be used for transferring paints, varnishes, coatings, pigments, and other compatible process materials.
🧬 Resin, Glue and Adhesive Transfer
🔄 The gentle pumping action can be suitable for transferring compatible resins, glues, adhesives, and viscous compounds.
🛢️ Oil and Diesel Transfer
💧 Suitable AODD pump configurations can be used for transferring oils, diesel, lubricants, and other compatible petroleum-based liquids.
🚰 Effluent and Wastewater
♻️ AODD Pumps can be used for transferring industrial wastewater, effluent, sludge-containing liquids, and other difficult fluids.
⛏️ Mining Applications
🪨 Pneumatic diaphragm pumps can be used for selected slurry, drainage, chemical, and process-fluid transfer applications in mining environments.
🚇 Mines and Tunnels
💨 Air-operated pumping technology is suitable for certain underground and tunnel applications where electrical hazards and difficult installation conditions need to be considered.
🍽️ Food and Dairy Industry
🥛 Suitable sanitary configurations can be considered for transferring compatible food, dairy, and process liquids.
💄 Pharmaceutical and Cosmetic Industries
🧴 AODD Pumps can be selected for suitable liquid-transfer applications involving compatible pharmaceutical, cosmetic, and personal-care products.
🏭 Industrial Fluid Transfer
⚙️ AODD Pumps can be integrated into a wide variety of industrial pumping systems where flexible installation, dry running, self-priming, and air-powered operation are required.
🏢 Industries Served
🧪 Chemical Processing Industry
🎨 Paint and Coating Industry
🧬 Adhesive and Resin Industry
🚰 Water and Wastewater Treatment
⛏️ Mining Industry
🚇 Construction, Mines and Tunnels
🍽️ Food and Beverage Industry
🥛 Dairy Industry
💊 Pharmaceutical Industry
💄 Cosmetic Industry
🛢️ Oil and Petroleum Industry
🏭 General Manufacturing Industry
📍 Air Operated Double Diaphragm Pump Manufacturer in India
🏭 ALPHA GLOBAL is an Air Operated Double Diaphragm Pump manufacturer in India, supplying pneumatic diaphragm pumping solutions for chemical, pharmaceutical, food, wastewater, mining, paint, oil, adhesive, and general industrial applications.
💨 Our AODD Pumps are designed for applications where self-priming, dry-running capability, chemical compatibility, adjustable flow, and safe operation are important.
📍 Customers searching for an Air Operated Double Diaphragm Pump manufacturer in Ahmedabad, Gujarat, or India can contact ALPHA GLOBAL with details such as required flow rate, liquid type, viscosity, temperature, solid particle size, pressure, and chemical compatibility.
📍 AODD Pump Supplier in Ahmedabad
🏭 ALPHA GLOBAL supplies Air Operated Double Diaphragm Pumps in Ahmedabad, Gujarat, and across India.
🤝 Our team can help customers select an appropriate pump size and Material of Construction based on their fluid-handling application.
🌍 Air Operated Double Diaphragm Pump Supplier and Exporter in India
🚚 ALPHA GLOBAL serves customers looking for AODD Pump suppliers and exporters in India.
🌎 Our pneumatic diaphragm pumps can be supplied for domestic and international industrial applications involving corrosive chemicals, abrasive slurries, viscous liquids, solvents, paints, oils, wastewater, and other difficult fluids.
📋 Customers can share application parameters to identify a suitable AODD Pump configuration.
🧭 How to Select the Right AODD Pump?
🔍 The correct Air Operated Double Diaphragm Pump should be selected after evaluating:
1️⃣ Required flow rate
2️⃣ Required discharge pressure
3️⃣ Liquid viscosity
4️⃣ Liquid temperature
5️⃣ Chemical composition
6️⃣ Abrasiveness of liquid
7️⃣ Solid particle size
8️⃣ Solid concentration
9️⃣ Required suction lift
🔟 Compressed-air availability
1️⃣1️⃣ Required Material of Construction
1️⃣2️⃣ Diaphragm material compatibility
1️⃣3️⃣ Continuous or intermittent operation
1️⃣4️⃣ Hazardous-area requirements
💡 Accurate application information helps ALPHA GLOBAL recommend the appropriate pump size, body material, diaphragm material, valve arrangement, and operating configuration.
❓ Frequently Asked Questions
❔ What is an AODD Pump?
💡 AODD stands for Air Operated Double Diaphragm Pump. It is a pneumatic positive displacement pump that uses compressed air to operate two diaphragms and transfer liquid.
❔ Is an AODD Pump suitable for hazardous areas?
🛡️ Yes. Since the pump is air operated and does not require an electric motor at the pumping unit, AODD Pumps are suitable for many hazardous and explosive-area applications where electrical hazards must be minimized.
❔ Can an AODD Pump run dry?
💨 Yes. Dry-running capability is one of the major advantages of AODD technology, allowing the pump to operate dry without damage under suitable operating conditions.
❔ What is the maximum flow rate of ALPHA GLOBAL AODD Pumps?
📊 ALPHA GLOBAL's AODD Pump range includes models with maximum flow rates up to approximately 586 LPM.
❔ What is the maximum pressure?
📈 The AODD Pump range can achieve pressure up to approximately 7 bar or 100 psi, depending on the model and operating conditions.
❔ What materials are available for AODD Pumps?
🏗️ ALPHA GLOBAL offers AODD Pump construction options including SS-316/CF8M, Aluminium, PP, and PVDF, depending on the application.
❔ What diaphragm materials are available?
🔧 Depending on chemical compatibility, diaphragm options include PTFE/Teflon, Neoprene, Santoprene, and Viton.
❔ Can AODD Pumps handle viscous liquids?
🛢️ Yes. Suitable AODD Pump configurations can handle many viscous fluids, slurries, adhesives, resins, oils, paints, and other difficult liquids.
❔ Can the flow rate be controlled?
📊 Yes. The flow rate can be adjusted by regulating the operating air supply through suitable air-control equipment.
❔ Can AODD Pumps handle solid particles?
🪨 Yes. Suitable models can handle liquids containing solid particles. The maximum particle size varies by pump size and is approximately 2 mm to 6.35 mm across the published range.
📞 Get the Right Air Operated Double Diaphragm Pump for Your Application
🚀 If you are searching for an Air Operated Double Diaphragm Pump manufacturer, AODD Pump supplier, pneumatic diaphragm pump exporter, or industrial air-operated pump solution in India, ALPHA GLOBAL provides application-focused pumping equipment for demanding fluid-transfer requirements.
📋 Share your required flow rate, pressure, liquid type, viscosity, temperature, particle size, chemical compatibility, and available air supply with ALPHA GLOBAL to identify the appropriate AODD Pump configuration.
🏭 ALPHA GLOBAL – Reliable Pneumatic Pumping Solutions for Safe, Flexible and Efficient Industrial Fluid Transfer.
