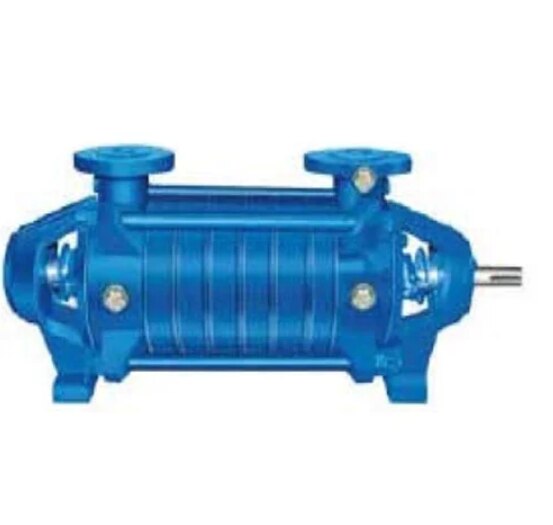

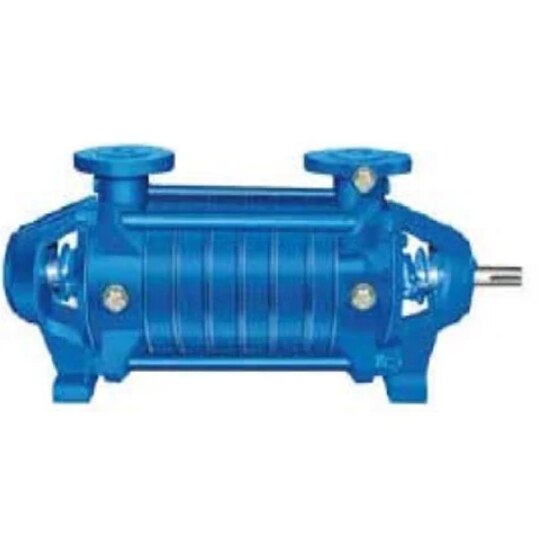

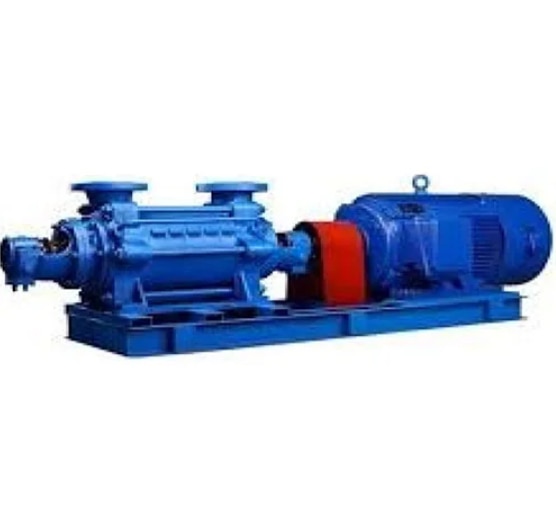

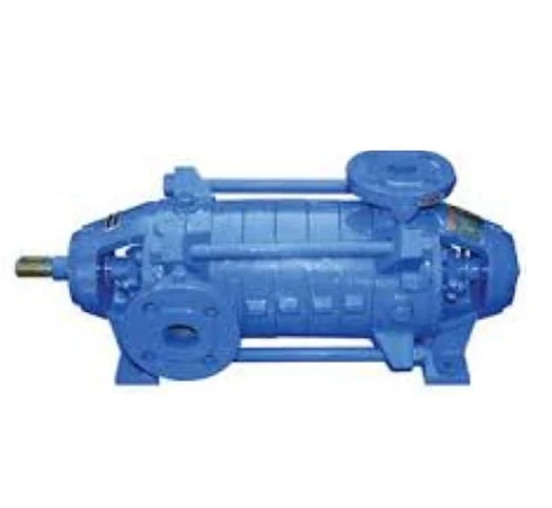

Horizontal Boiler Feed Pump

⚙️ Horizontal Boiler Feed Pump Manufacturer, Supplier & Exporter

🏭 ALPHA GLOBAL is a trusted Horizontal Boiler Feed Pump manufacturer, supplier, and exporter in India, providing high-pressure and high-head multistage centrifugal pumps for boiler feed water, condensate transfer, industrial clear water, power plants, high-pressure testing, irrigation, marine, refrigeration, and other demanding fluid-transfer applications.

💧 Horizontal Boiler Feed Pumps are designed to transfer and feed water into steam boilers at the required pressure and head. The pumped water may be fresh water or returning condensate generated during steam production.

⚙️ ALPHA GLOBAL manufactures Self Priming Centrifugal Multi-Stage Pumps, also known as High Pressure and High Head Pumps, specifically designed for reliable boiler-feed applications.

🔧 Horizontal Boiler Feed Pump

💧 A Horizontal Boiler Feed Pump is a multi-stage centrifugal pump designed to deliver water at high pressure and high head. Multiple pumping stages allow the pump to develop the pressure required for boiler-feed and other high-pressure applications.

🔄 The pump uses close-vein centrifugal impellers, with individual stages sealed using O-rings and clamped together with heavy-duty tie rods. This construction provides a strong and reliable assembly for high-pressure operation.

⚙️ ALPHA GLOBAL Horizontal Boiler Feed Pumps are available in bare-shaft configuration and are designed for applications requiring dependable water transfer, high pressure, high head, and continuous industrial operation.

🔧 Key Features of Horizontal Boiler Feed Pump

💧 Horizontal multi-stage centrifugal pump

🔥 Specifically suitable for boiler feed applications

📈 High-pressure and high-head performance

🔄 Self-priming capability

⚙️ Centrifugal close-vein impeller

🔩 Multiple stages sealed with O-rings

🏗️ Stages clamped using heavy-duty tie rods

💪 Heavy-duty bearing arrangement

🔧 Bearings designed to handle thrust loads

🛢️ Grease-lubricated bearings

⚙️ Bare-shaft configuration available

🌡️ Suitable for hot water and condensate applications

💧 Capacity up to approximately 18 m³/hr

📈 Head up to approximately 350 meters

💨 Pressure up to approximately 28.8 kg/cm²

🌡️ Temperature up to approximately 140°C

📏 Discharge size from approximately 25 mm to 50 mm

↕️ Suction lift up to approximately 7 meters

⚡ Speed up to approximately 2800 RPM

📋 Technical Specifications

⚙️ Pump Type: Horizontal Multistage Centrifugal Pump

💧 Application: Boiler Feed / High-Pressure Water Transfer

📊 Capacity: Up to 18 m³/hr

📈 Head: Up to 350 meters

💨 Maximum Pressure: Up to 28.8 kg/cm²

🌡️ Maximum Temperature: Up to 140°C

📏 Discharge Size: 25 mm to 50 mm

↕️ Suction Lift: Up to 7 meters

⚡ Speed: Up to 2800 RPM

🔄 Pump Configuration: Bare Shaft Type

⚙️ Impeller: Centrifugal Close-Vein Type

🔩 Stage Sealing: O-Ring

🏗️ Stage Assembly: Heavy-Duty Tie Rods

🛢️ Bearing Lubrication: Grease

📌 Actual pump performance depends on the selected model, operating conditions, water characteristics, suction conditions, temperature, pressure, and system requirements.

⭐ Why Choose ALPHA GLOBAL Horizontal Boiler Feed Pump?

🔥 High Pressure and High Head

📈 ALPHA GLOBAL Horizontal Boiler Feed Pumps are designed for high-pressure applications where water must be delivered to steam boilers at the required pressure. The available range can provide head up to approximately 350 meters and pressure up to approximately 28.8 kg/cm².

⚙️ Multi-Stage Construction

🔄 Multiple centrifugal stages allow the pump to generate high discharge pressure while maintaining a compact horizontal arrangement.

🔩 Reliable Stage Assembly

🏗️ Individual stages are sealed with O-rings and held together using heavy-duty tie rods, providing a secure construction for high-pressure pumping applications.

💪 Heavy-Duty Bearings

⚙️ The pump incorporates heavy-duty bearings designed to handle thrust loads in either direction, supporting dependable operation.

🛢️ Grease Lubrication

🔧 Grease-lubricated bearings help support long operating life and reliable performance under suitable operating conditions.

💧 Self-Priming Capability

🔄 ALPHA GLOBAL Horizontal Boiler Feed Pumps feature self-priming capability with suction lift up to approximately 7 meters, helping support reliable pump startup where the installation conditions permit.

🌡️ Hot Water and Condensate Handling

🔥 The pump range is designed for temperatures up to approximately 140°C, making suitable configurations appropriate for fresh boiler-feed water and returning hot condensate.

🏭 Applications of Horizontal Boiler Feed Pump

🔥 Steam Boiler Feed

💧 The primary application is feeding water into steam boilers at the required pressure and flow rate.

🔄 Condensate Water Transfer

💧 Suitable configurations can be used for transferring hot condensate water returning from steam-generation processes.

🏭 Industrial Clear Water

💧 Horizontal multistage pumps can be used for industrial clear-water transfer where high head and pressure are required.

⚡ Power Plants

🏭 High-pressure water-transfer requirements in power-generation facilities can be served using appropriately selected boiler-feed pump configurations.

🧪 High-Pressure Testing

📈 These pumps can be used in suitable high-pressure testing systems where the required pressure and flow characteristics match the pump performance.

🚢 Marine Applications

🌊 Horizontal Boiler Feed Pumps can be selected for suitable marine water-transfer and boiler-related applications.

❄️ Refrigeration Applications

💧 Suitable high-pressure water-transfer requirements in refrigeration systems can be handled with appropriately selected pump models.

🛢️ Fuel Oil Systems

⚙️ The pump range can be considered for suitable industrial fuel-related applications where the fluid and operating conditions are compatible with the pump construction.

🌾 Sprinkler Irrigation

💧 High-head pump configurations can be used for suitable sprinkler irrigation systems requiring elevated pressure.

⛰️ Hilly Area Water Supply

💦 High-head performance makes suitable models useful for water-transfer applications in hilly and elevated locations.

🏭 Industrial Process Systems

⚙️ The pump can be integrated into industrial process systems requiring high-pressure clear-water circulation or transfer.

🏢 Industries Served

🔥 Boiler and Steam Industries

⚡ Power Generation Plants

🏭 Process Industries

🚢 Marine Industry

❄️ Refrigeration Industry

🛢️ Oil and Fuel Industries

🌾 Agriculture and Irrigation

🏗️ Engineering Industries

💧 Water Treatment and Transfer

🧪 Industrial Processing

🏭 General Manufacturing Industries

📍 Horizontal Boiler Feed Pump Manufacturer in India

🏭 ALPHA GLOBAL is a Horizontal Boiler Feed Pump manufacturer in India, supplying high-pressure and high-head horizontal multistage centrifugal pumps for boiler feed, condensate transfer, industrial water, power plant, irrigation, marine, and other industrial applications.

⚙️ Our Horizontal Boiler Feed Pumps are designed for customers looking for high-pressure boiler feed pump manufacturers, multistage centrifugal pump manufacturers, industrial boiler feed pump suppliers, high-head pump manufacturers, and boiler water feed pump exporters in India.

📍 Customers searching for a Horizontal Boiler Feed Pump manufacturer in Ahmedabad, Gujarat, or India can contact ALPHA GLOBAL with details such as required flow rate, head, pressure, water temperature, suction lift, discharge size, and application.

📍 Horizontal Boiler Feed Pump Supplier in Ahmedabad

🏭 ALPHA GLOBAL supplies Horizontal Boiler Feed Pumps in Ahmedabad, Gujarat, and across India.

🤝 Our team can assist customers in selecting suitable pump capacity, number of stages, head, pressure rating, discharge size, operating speed, and configuration according to the boiler and process requirements.

🌍 Horizontal Boiler Feed Pump Supplier and Exporter in India

🚚 ALPHA GLOBAL serves customers looking for Horizontal Boiler Feed Pump suppliers and exporters in India.

🌎 Our high-pressure multistage centrifugal pumps can be supplied for domestic and international projects involving steam boilers, condensate systems, power plants, industrial water transfer, irrigation, marine applications, and high-pressure testing.

📋 Customers can share their application parameters to identify the appropriate Horizontal Boiler Feed Pump configuration.

🧭 How to Select the Right Horizontal Boiler Feed Pump?

🔍 The correct boiler feed pump should be selected after evaluating:

1️⃣ Required water flow rate

2️⃣ Required discharge head

3️⃣ Required operating pressure

4️⃣ Boiler working pressure

5️⃣ Water temperature

6️⃣ Condensate temperature

7️⃣ Suction lift

8️⃣ Discharge pipe size

9️⃣ Suction pipe arrangement

🔟 Required motor power

1️⃣1️⃣ Operating speed

1️⃣2️⃣ Number of pumping stages

1️⃣3️⃣ Continuous or intermittent operation

1️⃣4️⃣ Water quality and compatibility

1️⃣5️⃣ Installation conditions

💡 Providing accurate application details helps ALPHA GLOBAL select the appropriate pump size, number of stages, motor capacity, pressure rating, and configuration.

❓ Frequently Asked Questions

❔ What is a Horizontal Boiler Feed Pump?

💡 A Horizontal Boiler Feed Pump is a horizontal multistage centrifugal pump used to transfer and feed water into steam boilers at high pressure and high head.

❔ What is the maximum head of ALPHA GLOBAL Boiler Feed Pump?

📈 The Horizontal Boiler Feed Pump range can provide a head of up to approximately 350 meters, depending on the selected model and operating conditions.

❔ What is the maximum pressure?

💨 The pump range is designed for pressure up to approximately 28.8 kg/cm².

❔ What is the maximum capacity?

💧 ALPHA GLOBAL Horizontal Boiler Feed Pumps can provide capacity up to approximately 18 m³/hr, depending on the selected model and system conditions.

❔ Can the pump handle hot condensate water?

🔥 Yes. Suitable pump configurations can handle temperatures up to approximately 140°C, making them suitable for fresh boiler-feed water and returning condensate applications.

❔ Is the Horizontal Boiler Feed Pump self-priming?

🔄 Yes. ALPHA GLOBAL's Horizontal Boiler Feed Pumps feature self-priming capability with a suction lift of up to approximately 7 meters under suitable installation conditions.

❔ What type of impeller is used?

⚙️ The pump uses a centrifugal close-vein impeller designed for multistage high-pressure pumping.

❔ How are the pump stages assembled?

🔩 Individual stages are sealed with O-rings and clamped together using heavy-duty tie rods to provide a secure multistage assembly.

❔ What discharge sizes are available?

📏 The published range includes discharge sizes from approximately 25 mm to 50 mm.

❔ What is the maximum operating speed?

⚡ The Horizontal Boiler Feed Pump range can operate at speeds up to approximately 2800 RPM, depending on the selected model.

❔ Is a bare-shaft configuration available?

🔧 Yes. ALPHA GLOBAL offers the Horizontal Boiler Feed Pump in bare-shaft configuration for suitable industrial installations.

📞 Get the Right Horizontal Boiler Feed Pump for Your Application

🚀 If you are searching for a Horizontal Boiler Feed Pump manufacturer, multistage boiler feed pump supplier, high-pressure centrifugal pump manufacturer, high-head pump supplier, industrial boiler pump manufacturer, or boiler feed water pump exporter in India, ALPHA GLOBAL provides reliable pumping solutions for demanding industrial applications.

📋 Share your required flow rate, boiler pressure, required head, water temperature, suction lift, discharge size, and operating conditions with ALPHA GLOBAL to identify the appropriate Horizontal Boiler Feed Pump.

🏭 ALPHA GLOBAL – Reliable High-Pressure Multistage Pumping Solutions for Steam Boilers, Condensate Transfer and Industrial Water Applications.
