⚙️ FIG Pump
🏭 ALPHA GLOBAL manufactures and supplies FIG Pumps, including Fuel Injection Gear Pumps and Internal Gear Pumps, designed for high-pressure and controlled transfer of oils, fuels, lubricants, chemicals, and other compatible industrial fluids.
💨 These positive displacement gear pumps are engineered for reliable fluid transfer, self-priming operation, and consistent performance across demanding industrial applications. Depending on the model, the pumps can handle capacities from 50 LPH up to 6000 LPH and pressures up to 30 kg/cm².
🛢️ ALPHA GLOBAL FIG Pumps are suitable for applications involving Gas Oil, LDO, Furnace Oil, HSD, LSHS, lubricants, thermic fluids, transformer oil, solvents, pickling agents, electroplating solutions, and other compatible process liquids.
🔧 Key Features
⚙️ Positive displacement gear-pumping principle
💨 Self-priming / self-inducing operation
📈 High-pressure performance
🛢️ Suitable for oil and fuel transfer
🧪 Suitable for compatible industrial chemicals
🔄 Consistent and controlled liquid delivery
🔧 Internal and external gear pump configurations
🛠️ Horizontal or vertical mounting options for suitable models
🔒 Tight shaft-sealing arrangement
🛡️ Internal or external bypass options
🎛️ Adjustable pressure regulation
🔩 Multiple material and size options
🌡️ Suitable models for high-temperature liquids
🧴 Jacketed options available for temperature-sensitive liquids

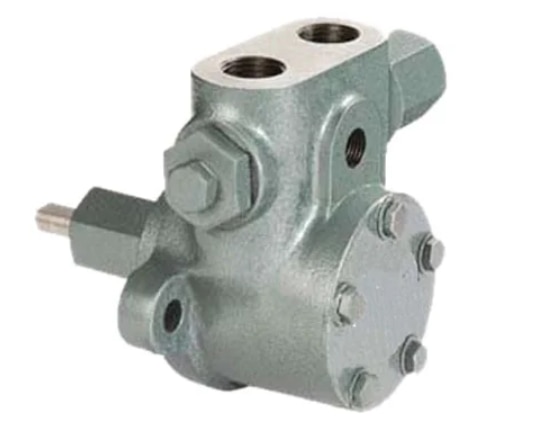

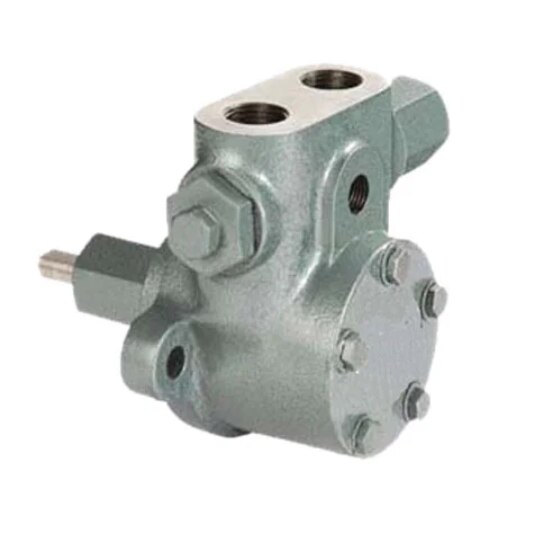

🛢️ Fuel Injection Gear Pump
🔥 ALPHA GLOBAL Fuel Injection Gear Pumps are designed as high-pressure gear pumps for oil burners, fuel-transfer systems, hydraulic drives, and other applications requiring controlled delivery of compatible oils.
⚙️ The pump construction combines a hydraulic cast-iron body with high-quality steel gears for demanding industrial operation. It can be used with various fuel oils and petroleum-based fluids, subject to viscosity and temperature requirements.
💧 Suitable fluids include Gas Oil, LDO, FO, HSD, LSHS, and other compatible oils.
📋 Fuel Injection Gear Pump Specifications
Parameter Specification
Pump Type Fuel Injection Gear Pump / Internal Gear Pump
Capacity 50 to 6000 LPH
Maximum Pressure Up to 30 kg/cm²
Operating Speed 1440 / 2880 RPM
Maximum Liquid Temperature Up to 200°C
Viscosity Range 5 to 450 cSt
Suction & Delivery 3/8' to 1' BSP
Pump Construction Hydraulic Cast Iron Body
Gear Material High-Quality Steel
⚙️ Internal Gear Pump
🔄 ALPHA GLOBAL Internal Gear Pumps are positive displacement pumps designed for controlled transfer of oils, lubricants, fuels, and compatible chemicals.
🏭 These pumps are suitable for high-pressure industrial applications and can be used in oil burners, hydraulic systems, chemical-processing equipment, and fluid-transfer systems.
💨 The internal gear arrangement provides controlled fluid movement and is suitable for applications requiring reliable pumping of low- to high-viscosity liquids.
🧪 The pumps can be configured according to the liquid characteristics, operating pressure, temperature, capacity, and installation requirements.
🌀 External Gear Pump
⚙️ ALPHA GLOBAL also manufactures Positive Displacement External Gear Pumps with a twin-gear pumping arrangement. These pumps are designed for transferring viscous and semi-viscous liquids with controlled and consistent flow.
💧 The helical gear arrangement provides smooth, pulse-free delivery, while the pumped liquid lubricates the bearing surfaces in suitable configurations.
📋 External Gear Pump Specifications
Parameter Specification
Pump Type Positive Displacement External Gear Pump
Material of Construction Cast Iron FG 200 / SS 316 / SS 316L / CF-8M
Capacity 10 to 500 LPM
Maximum Pressure Up to 10 kg/cm²
Pipe Size 1/4' BSP to 3' BSP
Standard Speed 1440 RPM
Suction Lift Up to 5 Meters at Mean Viscosity
⭐ Advantages of ALPHA GLOBAL FIG Pumps
📈 High-Pressure Operation
Selected FIG and Internal Gear Pump models can operate at pressures up to 30 kg/cm², making them suitable for high-pressure oil-transfer and burner applications.
💨 Self-Priming Capability
The pumps are designed for self-inducing operation and suitable configurations can provide suction lift of up to 5 meters at mean viscosity.
🛢️ Wide Fluid Compatibility
Depending on the selected construction and application, FIG Pumps can handle various fuels, oils, lubricants, thermic fluids, transformer oils, solvents, and compatible chemicals.
🔄 Consistent Flow
The positive displacement gear mechanism provides controlled liquid transfer and is suitable for applications requiring consistent delivery.
🛡️ Pressure Protection
Selected models are available with internal bypass or external top bypass arrangements for system protection.
🎛️ Adjustable Pressure
A progressively adjustable pressure regulator can be provided according to system requirements.
🔩 Flexible Installation
Suitable Internal Gear Pump models can be installed horizontally or vertically with an appropriate shaft-sealing arrangement.
🌡️ High-Temperature Applications
Selected models can handle liquid temperatures up to 200°C, subject to pump configuration and application conditions.
🧴 Jacketed Pump Option
SVRN jacketed models are available for temperature-sensitive materials such as bitumen, where maintaining suitable fluid temperature is important.
🧪 Applications of FIG Pumps
🛢️ Fuel Oil Transfer
Suitable for transferring compatible fuel oils in industrial fuel-handling systems.
🔥 Oil Burner Applications
High-pressure FIG Pumps can be used for suitable oil-burner fuel supply applications.
⛽ LDO Pumping
Suitable configurations can be used for Light Diesel Oil transfer.
🛢️ Furnace Oil
FIG Pumps can be selected for compatible Furnace Oil and heavy-oil applications.
⛽ HSD Transfer
Suitable for High Speed Diesel transfer systems.
🛢️ LSHS Applications
Suitable configurations can be used for Low Sulphur Heavy Stock applications.
🧴 Lubricant Transfer
Used for compatible lubricants and industrial oils.
🔥 Thermic Fluid Transfer
Suitable for compatible thermic-fluid pumping applications.
⚡ Transformer Oil
Can be selected for compatible transformer-oil transfer applications.
🧪 Chemical Processing
Suitable configurations can handle compatible industrial chemicals.
🧪 Weak Solvents
Suitable material combinations can be selected for compatible weak solvents.
⚗️ Pickling Applications
Can be used for suitable pickling-agent transfer.
🧪 Degreasing Solutions
Suitable for compatible degreasing-liquid transfer systems.
⚡ Electroplating Solutions
Can be considered for compatible electroplating process liquids after material compatibility evaluation.
💧 Effluent Treatment Chemicals
Suitable for transferring compatible effluent-treatment chemicals.
☣️ Industrial Intermediates
Can be selected for compatible industrial intermediates and process chemicals.
🏭 Industries Served
🧪 Chemical Industry
🛢️ Petrochemical Industry
🔥 Oil Burner Systems
⚡ Transformer and Electrical Industry
🏭 Engineering Industries
🧴 Lubricant Industry
⚙️ Hydraulic Systems
⚡ Electroplating Industry
💧 Effluent Treatment Plants
🔥 Thermal Process Industries
📍 FIG Pump Manufacturer in India
🏭 ALPHA GLOBAL is a FIG Pump manufacturer, supplier, and exporter in India, offering Fuel Injection Gear Pumps, Internal Gear Pumps, and External Gear Pumps for oil, fuel, lubricant, chemical, hydraulic, and industrial fluid-transfer applications.
📍 FIG Pump Manufacturer in Ahmedabad
🏭 ALPHA GLOBAL supplies FIG Pumps in Ahmedabad, Gujarat, and across India for oil burners, fuel systems, hydraulic drives, chemical plants, lubricant handling, electroplating, effluent treatment, and other industrial applications.
🌍 FIG Pump Exporter in India
🚚 ALPHA GLOBAL supplies Fuel Injection Gear Pumps and Internal Gear Pumps for domestic and international industrial applications requiring reliable positive displacement pumping.
❓ Frequently Asked Questions
❔ What is a FIG Pump?
⚙️ FIG stands for Fuel Injection Gear Pump. It is a positive displacement gear pump designed primarily for controlled transfer of fuel oils, lubricants, and other compatible industrial liquids.
❔ What is the difference between a Fuel Injection Gear Pump and an Internal Gear Pump?
🔄 Both use positive displacement gear-pumping principles, but their internal gear arrangements and application configurations differ. Fuel Injection Gear Pumps are commonly used for fuel and oil systems, while Internal Gear Pumps can be configured for a broader range of industrial liquids.
❔ What liquids can ALPHA GLOBAL FIG Pumps handle?
🛢️ Depending on the pump configuration, suitable fluids include Gas Oil, LDO, FO, HSD, LSHS, lubricants, thermic fluids, transformer oil, compatible solvents, and selected industrial chemicals.
❔ What is the maximum pressure of the Internal Gear FIG Pump?
📈 The specified maximum pressure is up to 30 kg/cm².
❔ What is the capacity range?
💧 The Internal Gear FIG Pump range is specified from 50 LPH to 6000 LPH, while the External Gear Pump range is specified from 10 LPM to 500 LPM.
❔ Are FIG Pumps self-priming?
💨 Yes. Suitable ALPHA GLOBAL gear pump configurations are self-inducing/self-priming and can provide suction lift up to 5 meters at mean viscosity.
❔ Can FIG Pumps handle high-temperature liquids?
🌡️ Selected models can handle liquid temperatures up to 200°C, depending on the complete pump configuration and application.
❔ Are jacketed gear pumps available?
🧴 Yes. Jacketed SVRN models are available for temperature-sensitive liquids such as bitumen.
❔ Can the pump be used for hydraulic drives?
⚙️ Yes. Internal Gear FIG Pumps are suitable for selected hydraulic-drive applications.
📞 Get the Right FIG Pump
🚀 If you are searching for a FIG Pump manufacturer, Fuel Injection Gear Pump manufacturer, Fuel Injection Gear Pump supplier, Internal Gear Pump manufacturer, Internal Gear Pump supplier, high-pressure Gear Pump manufacturer, oil pump manufacturer, fuel oil pump supplier, industrial Gear Pump manufacturer, or Gear Pump exporter in India, ALPHA GLOBAL provides application-oriented pumping solutions.
📋 Share your liquid name, viscosity, temperature, required capacity, operating pressure, suction conditions, speed, and application with ALPHA GLOBAL to select the appropriate FIG Pump configuration.
