Description

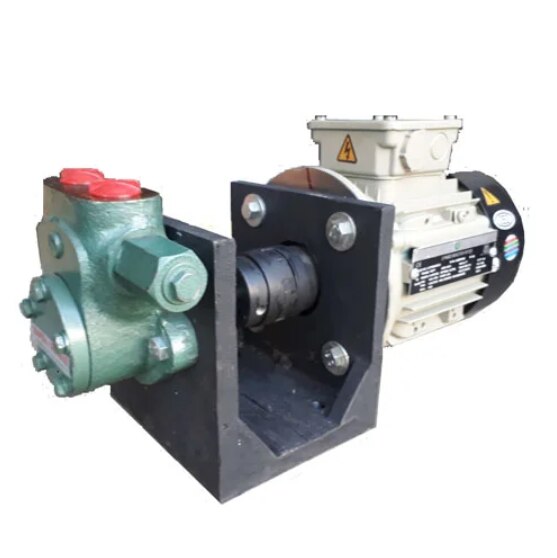

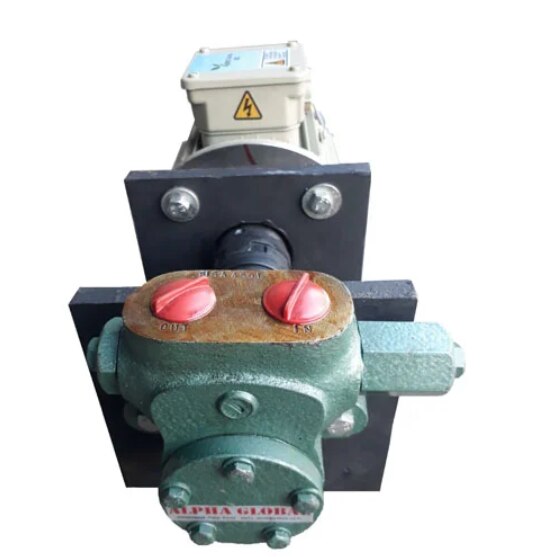

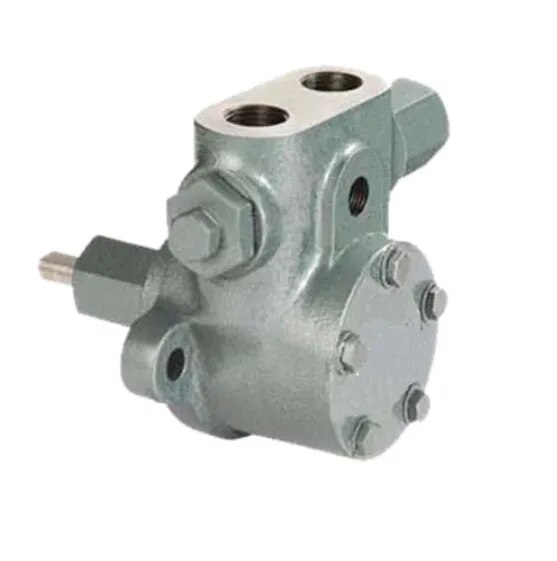

⚙️ Internal Gear FIG Pump
🏭 ALPHA GLOBAL manufactures and supplies Internal Gear FIG Pumps engineered for high-pressure and controlled transfer of oils, fuels, lubricants, thermic fluids, transformer oils, compatible solvents, and selected industrial chemicals.
🛢️ These FIG Pumps are designed as positive displacement gear pumps and are widely suitable for oil burner systems, hydraulic drives, fuel-transfer applications, and industrial fluid-handling systems. The pump body is manufactured from hydraulic-grade cast iron and incorporates high-quality steel gears for dependable operation under demanding working conditions.
🔥 Depending on the selected model and configuration, the pump can handle gas oil, LDO, Furnace Oil, HSD, LSHS, medium oils, heavy oils, and very heavy oils. Material compatibility and viscosity should always be evaluated before selecting the pump for a specific liquid.
🔧 Key Features
💨 Self-Inducing Operation
The positive displacement gear arrangement allows the pump to develop suction and supports reliable starting under suitable operating conditions.
🎛️ Adjustable Pressure Control
A progressively adjustable pressure regulator can be provided to match the operating requirements of the connected system.
↔️ Flexible Mounting
Suitable models can be installed horizontally or vertically, providing greater flexibility during equipment integration.
🔒 Tight Shaft Sealing
The shaft-sealing arrangement is designed to minimize leakage and support reliable operation.
🛡️ Bypass Protection
The pump can be configured with an internal bypass or an external top bypass arrangement for suitable pressure-control and system-protection requirements.
🔧 Relief Valve Options
Models can be supplied with or without a pressure relief valve according to the application and system design.
🌡️ High-Temperature Capability
Selected configurations can handle liquid temperatures up to 200°C, subject to the pump design, fluid properties, and operating conditions.
🧴 Jacketed Configuration
Jacketed SVRN-series models are available for temperature-sensitive materials such as bitumen and other liquids that need temperature maintenance during pumping.
📋 Technical Specifications
Parameter Specification
Pump Type Internal Gear FIG Pump
Pump Principle Positive Displacement Gear Pump
Capacity Range 50 to 6000 LPH
Maximum Pressure Up to 30 kg/cm²
Operating Speed 1440 / 2880 RPM
Maximum Liquid Temperature Up to 200°C
Viscosity Range 5 to 450 cSt
Suction & Delivery 3/8' to 1' BSP
Pump Body Hydraulic Cast Iron
Gear Material High-Quality Steel
Mounting Horizontal / Vertical, Model Dependent
Bypass Internal / External Top Bypass Options
Relief Valve With or Without, Model Dependent
Jacketed Version Available for Selected Applications
🛢️ High-Pressure Oil Pumping
🔥 ALPHA GLOBAL FIG Pumps are suitable for applications where oils and fuel fluids need to be transferred at controlled pressure. Their positive displacement design provides consistent pumping performance across a suitable viscosity range.
⛽ Fuel and Oil Applications
Suitable fluids can include:
🛢️ Gas Oil
⛽ LDO – Light Diesel Oil
🔥 FO – Furnace Oil
⛽ HSD – High Speed Diesel
🛢️ LSHS – Low Sulphur Heavy Stock
🧴 Medium-Viscosity Oils
🛢️ Heavy Oils
🔥 Very Heavy Oils
🧪 Industrial Fluid Applications
Depending on the selected construction and material compatibility, FIG Pumps can also be used for:
🧴 General Lubricants
⚙️ Wire-Drawing Lubricants
🔥 Thermic Fluids
⚡ Transformer Oil
🧪 Weak Solvents
⚗️ Pickling Agents
🧪 Degreasing Solutions
⚡ Electroplating Solutions
💧 Effluent Treatment Chemicals
☣️ Industrial Intermediates
🧪 Selected Toxic Chemicals
⚗️ Compatible Acids
⚠️ Chemical compatibility must be checked for every application, particularly when handling acids, solvents, aggressive chemicals, or toxic materials.
⭐ Why Choose ALPHA GLOBAL FIG Pumps?
📈 High-Pressure Performance
The FIG Internal Gear Pump range is designed for applications requiring pressure up to 30 kg/cm², depending on the selected model and operating conditions.
💧 Wide Capacity Range
Models are available from approximately 50 LPH through 6000 LPH, allowing selection according to required process flow.
🔄 Positive Displacement Pumping
The internal gear mechanism provides controlled and consistent liquid movement, making it suitable for fuel, oil, lubricant, and compatible chemical-transfer applications.
🛢️ Wide Oil Compatibility
The pump range can be configured for various grades of oil, from relatively low-viscosity fluids to heavier oils, subject to the specified viscosity range.
⚙️ Multiple Operating Speeds
Models are available for 1440 RPM and 2880 RPM operation, depending on the required capacity and application.
🌡️ High-Temperature Applications
Selected configurations support liquid temperatures up to 200°C, making them suitable for compatible high-temperature process fluids.
🔧 Application Customization
Pump size, configuration, mounting arrangement, bypass arrangement, relief-valve provision, materials, and jacketed construction can be selected according to application requirements.
🏭 Industrial Construction
The hydraulic cast-iron body and high-quality steel gears provide a robust construction suitable for demanding industrial environments.
🔥 Applications of Internal Gear FIG Pumps
🔥 Oil Burner Systems
FIG Pumps can be used for suitable fuel-oil supply and circulation applications in industrial oil burner systems.
⚙️ Hydraulic Drives
The high-pressure positive displacement design is suitable for compatible hydraulic-drive applications.
🧴 Wire Drawing Lubricants
Suitable for pumping compatible lubricants used in wire-drawing processes.
🔥 Thermic Fluid Systems
Can be selected for compatible thermic-fluid circulation and transfer applications.
⚡ Transformer Oil Handling
Suitable configurations can be used for transformer-oil transfer applications.
🧴 General Lubricant Transfer
Used for transferring compatible industrial lubricants and oils.
🧪 Pickling Applications
Suitable for compatible pickling agents when the selected pump materials meet the chemical requirements.
🧪 Solvent Transfer
Can be used with selected weak solvents after confirming chemical compatibility.
🧽 Degreasing Solutions
Suitable for compatible degreasing liquids in industrial processing systems.
⚡ Electroplating Applications
Can be considered for compatible electroplating solutions with appropriate material selection.
💧 Effluent Treatment
Suitable for transferring compatible effluent-treatment chemicals.
🧪 Industrial Chemical Transfer
Can be configured for selected intermediates, process chemicals, and other compatible industrial fluids.
🌡️ Jacketed FIG Pump for Temperature-Sensitive Liquids
🧴 ALPHA GLOBAL offers jacketed FIG Pump configurations, including SVRN-series options, for applications where the pumped material must remain within a suitable temperature range during transfer.
🔥 Jacketed construction is particularly useful for materials such as bitumen and other temperature-sensitive, high-viscosity products that may become difficult to pump when their temperature decreases.
⚙️ Heating arrangements and pump configuration should be selected according to the specific product, operating temperature, viscosity, flow requirement, and process conditions.
📍 Internal Gear FIG Pump Manufacturer in India
🏭 ALPHA GLOBAL is an Internal Gear FIG Pump manufacturer, supplier, and exporter in India, offering high-pressure gear pumps for fuel oils, lubricants, thermic fluids, transformer oil, hydraulic applications, compatible solvents, chemicals, and industrial process fluids.
📍 FIG Pump Manufacturer in Ahmedabad
🏭 ALPHA GLOBAL supplies FIG Internal Gear Pumps in Ahmedabad, Gujarat, and across India for oil burner systems, hydraulic drives, chemical processing, lubricant transfer, electroplating, effluent treatment, and industrial fluid-handling applications.
🌍 FIG Pump Exporter in India
🚚 ALPHA GLOBAL supplies Internal Gear FIG Pumps for domestic and international industrial applications requiring positive displacement, high-pressure, and controlled fluid transfer.
❓ Frequently Asked Questions
❔ What is an Internal Gear FIG Pump?
⚙️ An Internal Gear FIG Pump is a positive displacement gear pump designed for controlled transfer of oils, fuels, lubricants, thermic fluids, and other compatible industrial liquids.
❔ What does FIG Pump mean?
🔥 FIG commonly refers to Fuel Injection Gear Pump. These pumps are widely used for fuel-oil handling, oil burner systems, hydraulic applications, and other industrial fluid-transfer duties.
❔ What is the maximum pressure of an ALPHA GLOBAL FIG Pump?
📈 The specified maximum pressure is up to 30 kg/cm², depending on the selected model and operating conditions.
❔ What is the capacity range?
💧 The specified capacity range is approximately 50 LPH to 6000 LPH.
❔ What viscosity range can the pump handle?
🧴 The specified viscosity range is approximately 5 cSt to 450 cSt.
❔ What operating speeds are available?
⚙️ Models are available for 1440 RPM and 2880 RPM operation, depending on the selected configuration.
❔ Can the FIG Pump handle high-temperature liquids?
🌡️ Selected configurations can handle liquid temperatures up to 200°C, subject to application conditions and pump selection.
❔ Are FIG Pumps self-priming?
💨 Suitable FIG Pump configurations are self-inducing and designed to develop suction under appropriate operating conditions.
❔ Can the pump be mounted vertically?
↕️ Yes. Suitable models can be configured for horizontal or vertical mounting.
❔ Is a bypass arrangement available?
🛡️ Yes. Internal bypass and external top bypass configurations are available depending on the model and application.
❔ Is a pressure relief valve available?
🔧 Yes. Selected models can be supplied with or without a pressure relief valve according to system requirements.
❔ Are jacketed FIG Pumps available?
🌡️ Yes. Jacketed SVRN-series configurations are available for temperature-sensitive materials such as bitumen and other liquids requiring temperature maintenance.
❔ Which industries use FIG Pumps?
🏭 FIG Pumps are used in oil burner systems, chemical plants, lubricant handling, hydraulic systems, electroplating, effluent treatment, thermic-fluid systems, transformer-oil handling, and other industrial applications.
📞 Get the Right Internal Gear FIG Pump
🚀 If you are searching for an Internal Gear FIG Pump manufacturer, Fuel Injection Gear Pump manufacturer, High Pressure Gear Pump supplier, Internal Gear Pump manufacturer, oil burner pump supplier, fuel oil pump manufacturer, hydraulic Gear Pump supplier, industrial Gear Pump manufacturer, or FIG Pump exporter in India, ALPHA GLOBAL provides application-focused pumping solutions.
📋 Share your liquid type, viscosity, temperature, required flow rate, operating pressure, suction conditions, RPM, and application details with ALPHA GLOBAL to select the appropriate FIG Internal Gear Pump.
