💧 Water Ring Vacuum Pump 🏭 ALPHA GLOBAL manufactures and supplies Water Ring Vacuum Pumps and Water Ring Vacuum Mono-Block Pumps for industrial processes requiring dependable vacuum generation. These pumps use a liquid-ring operating principle and are particularly suitable for applications involving moist air, vapours, and compatible gases. ⚙️ ALPHA GLOBAL Water Ring Vacuum Pumps are available in different capacities and motor configurations to meet varying industrial vacuum requirements. The range can be used for vacuum filtration, moisture extraction, dehydration, distillation, evaporation, pneumatic conveying, paper-pulp dewatering, and other process applications. 🌊 The water-ring operating system is well suited to applications where moisture or vapour is present in the gas stream. The available Mono-Block configuration provides a compact solution for installations where space and simplified equipment arrangement are important. 🔧 Key Features 💧 Water-ring vacuum operating principle ⚙️ Industrial Mono-Block configurations available 🌫️ Suitable for moist air and compatible vapours 🧪 Suitable for compatible aggressive gases 💨 Efficient vacuum generation 🔄 Smooth and continuous gas handling 🏭 Multiple capacity options ⚡ Different motor power and speed configurations 🛠️ Suitable for continuous industrial operation 📦 Compact Mono-Block construction 💧 Suitable for wet vacuum applications 📋 Oil Sealed Vacuum Pump Specifications Sr. No. Model Stage Free Air Displacement Ultimate Vacuum Motor Required Approx. Oil Filling 1 AGL50 1 1.8 CFM 0.05 mm Hg 0.25 HP 2 L 2 AGL50 2 1.8 CFM 0.005 mm Hg 0.25 HP — 3 AGL100 1 3.5 CFM 0.05 mm Hg 0.25 HP 2 L 4 AGL100 2 3.5 CFM 0.005 mm Hg 0.5 HP — 5 AGL150 1 5.3 CFM 0.05 mm Hg 0.5 HP 3 L 6 AGL150 2 5.3 CFM 0.005 mm Hg 1 HP — 7 AGL200 1 7.0 CFM 0.05 mm Hg 0.5 HP 3 L 8 AGL200 2 7.0 CFM 0.005 mm Hg 1 HP 4 L 9 AGL300 1 10.6 CFM 0.05 mm Hg 1 HP 6 L 10 AGL300 2 10.6 CFM 0.005 mm Hg 1.5 HP — 11 AGL500 1 17.6 CFM 0.05 mm Hg 1.5 HP 7 L 12 AGL500 2 17.6 CFM 0.005 mm Hg 2 HP — 13 AGL750 1 26.5 CFM 0.05 mm Hg 2 HP 8 L 14 AGL750 2 26.5 CFM 0.005 mm Hg 3 HP — 15 AGL1000 1 35.3 CFM 0.05 mm Hg 2 HP 15 L 16 AGL1000 2 35.3 CFM 0.005 mm Hg 3 HP — 17 AGL1500 1 53 CFM 0.05 mm Hg 3 HP 20 L 18 AGL1500 2 53 CFM 0.005 mm Hg 5 HP — 19 AGL2000 1 70.6 CFM 0.05 mm Hg 3 HP 25 L 20 AGL2000 2 70.6 CFM 0.005 mm Hg 5 HP — 21 AGL3000 1 106 CFM 0.05 mm Hg 5 HP 35 L 22 AGL3000 2 106 CFM 0.005 mm Hg 7.5 HP 40 L 💧 Water Ring Vacuum Pump Specifications Sr. No. Model Capacity Recommended Motor Water Consumption 1 AGWV-4 50 m³/hr 3 HP / 2850 RPM 7 L/min 2 AGWV-7 80 m³/hr 5 HP / 2850 RPM 10 L/min 3 AGWV-12 120 m³/hr 7.5 HP / 2850 RPM 10 L/min 4 AGWV-15 160 m³/hr 7.5 HP / 1440 RPM 20 L/min 5 AGWV-20 220 m³/hr 10 HP / 1440 RPM 20 L/min 6 AGWV-30 330 m³/hr 15 HP / 1440 RPM 30 L/min 7 AGWV-40 440 m³/hr 20 HP / 1440 RPM 40 L/min 🌡️ Water consumption values are specified at approximately 30°C and 1 kg/cm² conditions. 🔄 How a Water Ring Vacuum Pump Works 💧 A Water Ring Vacuum Pump operates by using a rotating impeller inside a partially water-filled casing. As the impeller rotates, the liquid forms a ring around the casing and creates sealed pockets that draw gas from the connected vacuum system. 💨 As these pockets move through the pump, the gas is compressed and discharged. This continuous process generates vacuum while the circulating liquid also helps absorb heat generated during operation. 🌊 Because water is used as the sealing medium, the technology is particularly useful for suitable applications involving moisture, vapours, and wet gas streams. 🏭 Water Ring Vacuum Pump Applications 💧 Moisture Extraction Water Ring Vacuum Pumps can be used for industrial processes where moisture needs to be removed under reduced-pressure conditions. 🧪 Vacuum Filtration The pump creates the vacuum required to establish pressure differential during suitable filtration processes. ⚗️ Distillation Vacuum generation can support compatible distillation processes where reduced pressure is required. 🌡️ Vacuum Distillation Water Ring Vacuum Pumps can be selected for suitable vacuum-distillation systems. 💧 Dehydration The pumps can assist in compatible dehydration applications where moisture removal under vacuum is required. 💨 Pneumatic Conveying Suitable vacuum configurations can be used for conveying compatible powders, granules, and process materials. 📄 Paper Pulp Dewatering Water Ring Vacuum Pumps can support paper-industry processes involving water removal from paper pulp and related materials. 🔥 Evaporation Vacuum generation can be used in compatible evaporation processes to operate at reduced pressure. 🍬 Sugar Conveying Suitable vacuum systems can be used for transferring and conveying sugar and compatible process materials. 🧪 Chemical Processing Water Ring Vacuum Pumps can be selected for suitable chemical processes involving vapours, moisture, and compatible aggressive gases. 🛢️ Petrochemical Processing Suitable configurations can support petrochemical applications requiring vacuum generation and vapour handling. 🍱 Food Processing Water Ring technology can be considered for compatible food-processing applications involving wet gases, vapours, and vacuum operations. 💊 Pharmaceutical Machinery Suitable Water Ring Vacuum Pumps can be used with pharmaceutical machinery where the process requirements and materials are compatible. 🧴 PVC Manufacturing Vacuum systems can be integrated into suitable PVC manufacturing and processing equipment. 🎨 Lamination Plants The pumps can provide vacuum for compatible lamination processes requiring controlled pressure conditions. 🔬 Laboratories and Research Suitable vacuum pumps can be used in laboratory and research equipment requiring rough or medium vacuum. ⭐ Why Choose ALPHA GLOBAL Water Ring Vacuum Pumps? 💧 Wet Vacuum Technology The liquid-ring principle is particularly useful for applications involving moist gases, vapours, and suitable wet process streams. ⚙️ Multiple Capacity Options ALPHA GLOBAL offers different pump models and capacities, allowing selection according to the required vacuum duty. 🏭 Industrial Applications The pumps are suitable for demanding applications across chemical, petrochemical, food, pharmaceutical, sugar, paper, textile, cement, and other industries. 🔄 Continuous Operation Water Ring Vacuum Pumps are designed for continuous industrial vacuum applications when properly selected and operated. 🌫️ Vapour Handling The water-ring design makes these pumps suitable for applications where compatible vapours are present in the gas stream. 🛠️ Application-Based Selection The appropriate model can be selected according to vacuum requirement, pumping capacity, vapour load, operating temperature, water availability, and process conditions. 📦 Mono-Block Option Mono-Block models provide a compact arrangement for applications where space-efficient equipment installation is preferred. 🏢 Industries Served 🧪 Chemical Industries 🛢️ Petrochemical Industries 🍱 Food Processing Industries 🍬 Sugar Industries 📄 Paper Industries 🧵 Textile Industries 💊 Pharmaceutical Industries 🏗️ Cement Industries 🧴 PVC Manufacturing Units 🎨 Lamination Plants 🔬 Laboratories 🧪 Research Facilities 📍 Water Ring Vacuum Pump Manufacturer in India 🏭 ALPHA GLOBAL is a Water Ring Vacuum Pump manufacturer, supplier, and exporter in India, offering industrial Water Ring Vacuum Pumps and Water Ring Vacuum Mono-Block Pumps for vacuum filtration, moisture extraction, dehydration, distillation, evaporation, pneumatic conveying, paper-pulp dewatering, and other process applications. 📍 Water Ring Vacuum Pump Manufacturer in Ahmedabad 🏭 ALPHA GLOBAL supplies Water Ring Vacuum Pumps in Ahmedabad, Gujarat, and across India for chemical, petrochemical, pharmaceutical, food processing, sugar, paper, PVC, textile, cement, lamination, laboratory, and research applications. 🌍 Water Ring Vacuum Pump Exporter in India 🚚 ALPHA GLOBAL provides Water Ring Vacuum Pump solutions for domestic and international industrial applications requiring reliable wet vacuum generation and vapour-handling capability. ❓ Frequently Asked Questions ❔ What is a Water Ring Vacuum Pump? 💧 A Water Ring Vacuum Pump is a vacuum-generating machine that uses a rotating liquid ring as the sealing medium to remove gases and create reduced pressure. ❔ What is a Water Ring Vacuum Mono-Block Pump? ⚙️ It is a compact water-ring vacuum pump configuration in which the pump and motor are arranged as an integrated unit. ❔ What are Water Ring Vacuum Pumps used for? 🏭 They are used for vacuum filtration, moisture extraction, dehydration, distillation, vacuum distillation, evaporation, pneumatic conveying, paper-pulp dewatering, and other compatible vacuum applications. ❔ Can a Water Ring Vacuum Pump handle moist air? 🌊 Yes. Water Ring Vacuum Pumps are particularly suitable for applications involving moist air and compatible vapours. ❔ Can these pumps be used for aggressive gases? 🧪 They can be considered for compatible aggressive gases after evaluating the gas composition, temperature, liquid-ring medium, and material compatibility. ❔ What is the maximum listed capacity? 📈 The listed Water Ring Vacuum Pump range goes up to 440 m³/hr for the AGWV-40 model. ❔ Which industries use Water Ring Vacuum Pumps? 🏭 Chemical, petrochemical, food processing, sugar, paper, pharmaceutical, PVC, textile, cement, lamination, laboratory, and research applications can use suitable Water Ring Vacuum Pump systems. ❔ How do I select the correct Water Ring Vacuum Pump? 📋 Selection should consider required vacuum level, pumping capacity, gas composition, vapour load, operating temperature, water consumption, installation conditions, and process requirements. 📞 Get the Right Water Ring Vacuum Pump 🚀 If you are searching for a Water Ring Vacuum Pump manufacturer, Water Ring Vacuum Pump supplier, Water Ring Vacuum Pump exporter, Water Ring Vacuum Mono-Block manufacturer, Liquid Ring Vacuum Pump manufacturer, industrial Vacuum Pump supplier, vacuum filtration pump manufacturer, or Water Ring Vacuum Pump manufacturer in India, ALPHA GLOBAL provides application-oriented vacuum solutions. 📋 Share your required vacuum level, capacity, gas or vapour type, operating temperature, water availability, and process application with ALPHA GLOBAL to select the appropriate Water Ring Vacuum Pump. 🏭 ALPHA GLOBAL – Reliable Water Ring Vacuum Pump Solutions for Vacuum Filtration, Moisture Extraction, Distillation, Dehydration, Evaporation, Pneumatic Conveying and Industrial Process Applications.

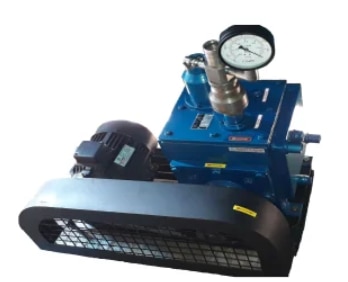

Industrial Vacuum Pumps 🏭 ALPHA GLOBAL manufactures and supplies Industrial Vacuum Pumps for applications requiring reliable removal of air, gases, moisture, vapours, and other process media from enclosed systems. The range includes Oil Sealed Vacuum Pumps and Water Ring Vacuum Pumps designed for industrial production, process plants, laboratories, and research applications. 💨 These vacuum systems can be selected for rough and medium vacuum requirements and can also be used as backing pumps in vacuum arrangements combined with Roots Vacuum Pumps or other high-vacuum equipment. ⚙️ ALPHA GLOBAL offers application-oriented vacuum pumping solutions for industries such as chemical, petrochemical, pharmaceutical, food processing, sugar, paper, textile, fertilizer, cement, PVC, and other manufacturing sectors. 🔧 Oil Sealed Vacuum Pumps 🛢️ Oil Sealed Rotary Vane Vacuum Pumps are designed for applications requiring dependable vacuum generation, good ultimate vacuum performance, efficient pumping speed, and reliable vapour handling. 🔄 The rotary vane range is available in single-stage and two-stage configurations. These pumps can generate rough and medium vacuum and may also be used as backing pumps in combination with Roots or high-vacuum systems. 🔇 Their compact construction and comparatively quiet operation make them suitable for industrial production, process equipment, laboratories, and research applications. ⭐ Key Features 💨 Efficient vacuum generation 🔄 Single-stage and two-stage configurations 📈 Good ultimate vacuum performance ⚡ High pumping speed 🌫️ Suitable vapour-handling capability 🔇 Low-noise operation in suitable configurations 🏭 Suitable for industrial production 🔬 Suitable for laboratory and research applications ⚙️ Can be used as backing pumps 🛠️ Suitable for continuous industrial vacuum requirements 💧 Water Ring Vacuum Pumps 🌊 Water Ring Vacuum Pumps use a rotating liquid ring as the sealing medium to generate vacuum. This operating principle makes them particularly suitable for applications involving moist air, vapours, and compatible aggressive gases. 💧 The water-ring design provides smooth gas handling and can be useful in processes where moisture or vapour loads are present. The pump can be selected according to required capacity, operating speed, water consumption, and process conditions. 🏭 ALPHA GLOBAL Water Ring Vacuum Pumps are available in different capacities for industrial vacuum applications across chemical, petrochemical, sugar, paper, textile, pharmaceutical, food processing, and other industries. 📋 Water Ring Vacuum Pump Specifications Sr. No. Model Capacity Recommended Motor Water Consumption 1 AGWV-4 50 m³/hr 3 HP / 2850 RPM 7 L/min 2 AGWV-7 80 m³/hr 5 HP / 2850 RPM 10 L/min 3 AGWV-12 120 m³/hr 7.5 HP / 2850 RPM 10 L/min 4 AGWV-15 160 m³/hr 7.5 HP / 1440 RPM 20 L/min 5 AGWV-20 220 m³/hr 10 HP / 1440 RPM 20 L/min 6 AGWV-30 330 m³/hr 15 HP / 1440 RPM 30 L/min 7 AGWV-40 440 m³/hr 20 HP / 1440 RPM 40 L/min 💧 Water consumption values are specified at approximately 30°C and 1 kg/cm² operating conditions. ⚙️ Water Ring Vacuum Mono-Block 🔧 ALPHA GLOBAL also offers Water Ring Vacuum Mono-Block models designed for compact vacuum-system installations. These integrated configurations combine the vacuum pump and motor arrangement in a space-efficient design. 📋 Specifications Sr. No. Model Speed Capacity Motor Water Consumption Suction / Discharge 1 AG/LX-01 2850 RPM 20 m³/hr 3 HP 25 L/min 25 mm 2 MG/LX-12 2850 RPM 35 m³/hr 3 HP 25 L/min 25 mm 3 AG/LX-23 2850 RPM 50 m³/hr 4 HP 25 L/min 25 mm 4 AG/LX-35 1450 RPM 110 m³/hr 10 HP 40 L/min 40 mm 🌡️ Water consumption values are specified at approximately 30°C. ⭐ Why Choose ALPHA GLOBAL Vacuum Pumps? 💨 Reliable Vacuum Generation ALPHA GLOBAL Vacuum Pumps are designed to create reduced pressure by removing air, gases, vapours, and moisture from enclosed systems. ⚙️ Multiple Pumping Technologies Oil Sealed Rotary Vane and Water Ring technologies provide different options for industrial vacuum requirements. 📈 Wide Vacuum Applications The pumps can be selected for rough and medium vacuum applications and suitable backing-pump arrangements. 🛢️ Oil-Sealed Technology Rotary vane pumps use oil sealing to support efficient vacuum generation and are available in single-stage and two-stage configurations. 💧 Liquid Ring Technology Water Ring Vacuum Pumps use water as the sealing medium and are particularly useful for suitable wet, humid, vapour-containing, and aggressive-gas applications. 🔇 Smooth Operation Water Ring Vacuum Pumps can provide smooth, pulse-free gas handling, making them suitable for various industrial processes. 🧪 Process Flexibility Pump selection can be based on vacuum requirement, gas composition, vapour load, moisture content, temperature, required pumping capacity, and process conditions. 🏭 Industrial Construction The range is designed for demanding industrial environments where dependable vacuum generation is required. 🧪 Applications of Industrial Vacuum Pumps 🧪 Chemical Industry Used for suitable chemical-processing applications involving vacuum filtration, evaporation, drying, distillation, and moisture removal. ⚗️ Petrochemical Industry Suitable vacuum solutions can be selected for compatible petrochemical processes involving gases, vapours, and liquid handling. 🍬 Sugar Industry Used in selected sugar-processing applications requiring vacuum generation and moisture management. 📄 Paper Industry Suitable for paper-processing applications involving vacuum, moisture extraction, and dewatering processes. 🧵 Textile Industry Can be used for compatible textile manufacturing and process applications. 🌾 Fertilizer Industry Suitable for process applications requiring industrial vacuum generation. 🏗️ Cement Industry Vacuum systems can be used for suitable process, material-handling, and filtration applications. 🍱 Food Processing Water Ring Vacuum Pumps can be considered for compatible food-processing applications involving moisture, vapours, and vacuum filtration. 💊 Pharmaceutical Machinery Vacuum pumps are used in suitable pharmaceutical equipment and processes requiring controlled vacuum conditions. 🎨 Lamination Plants Used for suitable lamination processes where vacuum generation is required. 🧴 PVC Manufacturing Vacuum systems can support suitable PVC processing and manufacturing equipment. ⚗️ Distillation Vacuum pumps can help reduce operating pressure in suitable distillation systems. 🧪 Vacuum Distillation Suitable vacuum generation can support processes where distillation under reduced pressure is required. 💧 Vacuum Filtration Vacuum pumps create the pressure differential required for efficient liquid-solid separation. 🌫️ Moisture Extraction Suitable vacuum systems can assist in removing moisture from compatible process materials. 💧 Dehydration Used in suitable industrial dehydration processes requiring reduced pressure. 🌬️ Moist Air Handling Water Ring Vacuum Pumps are particularly suitable for applications involving moist air and compatible vapours. 🧪 Aggressive Gas Handling Water Ring technology can be selected for compatible aggressive gases after confirming material compatibility and process conditions. 🔬 Laboratory and Research Oil Sealed Vacuum Pumps can be used for suitable laboratory and research applications requiring rough or medium vacuum. 🔄 Backing Pump Applications Suitable Oil Sealed Vacuum Pumps can function as backing pumps in systems using Roots Vacuum Pumps or higher-vacuum equipment. 📍 Industrial Vacuum Pump Manufacturer in India 🏭 ALPHA GLOBAL is an Industrial Vacuum Pump manufacturer, supplier, and exporter in India, offering Oil Sealed Rotary Vane Vacuum Pumps, Water Ring Vacuum Pumps, and Water Ring Vacuum Mono-Block Pumps for a wide range of industrial and process applications. 📍 Vacuum Pump Manufacturer in Ahmedabad 🏭 ALPHA GLOBAL supplies Vacuum Pumps in Ahmedabad, Gujarat, and across India for chemical, petrochemical, pharmaceutical, food processing, sugar, paper, textile, fertilizer, cement, PVC, lamination, laboratory, and research applications. 🌍 Vacuum Pump Exporter in India 🚚 ALPHA GLOBAL provides industrial vacuum pumping solutions for domestic and international customers requiring reliable vacuum generation for filtration, dehydration, moisture extraction, distillation, drying, and other process applications. ❓ Frequently Asked Questions ❔ What is an Industrial Vacuum Pump? 💨 An Industrial Vacuum Pump is equipment used to remove gases, air, vapours, or moisture from an enclosed system to reduce its internal pressure and create a vacuum. ❔ What types of Vacuum Pumps does ALPHA GLOBAL offer? ⚙️ ALPHA GLOBAL offers Oil Sealed Rotary Vane Vacuum Pumps and Water Ring Vacuum Pumps, including Water Ring Vacuum Mono-Block models. ❔ What is an Oil Sealed Rotary Vane Vacuum Pump? 🔄 It is a positive-displacement vacuum pump that uses rotating vanes and oil sealing to remove gases and create vacuum. ❔ What is a Water Ring Vacuum Pump? 💧 A Water Ring Vacuum Pump uses a rotating liquid ring as the sealing medium for generating vacuum and handling compatible gases and vapours. ❔ Can Vacuum Pumps handle moisture and vapours? 🌊 Water Ring Vacuum Pumps are particularly suitable for applications involving compatible moist air and vapours. ❔ Can these pumps be used for vacuum filtration? 💧 Yes. Vacuum pumps are commonly used to create the pressure differential required for suitable filtration processes. ❔ Can Oil Sealed Vacuum Pumps be used as backing pumps? 🔄 Yes. Suitable Oil Sealed Rotary Vane Vacuum Pumps can be used as backing pumps in combination with Roots or higher-vacuum systems. ❔ Which industries use Industrial Vacuum Pumps? 🏭 Chemical, petrochemical, pharmaceutical, food processing, sugar, paper, textile, fertilizer, cement, PVC, lamination, laboratory, and research industries can use suitable Industrial Vacuum Pump systems. ❔ How should a Vacuum Pump be selected? 📋 Selection should consider required vacuum level, pumping capacity, gas composition, vapour load, moisture content, temperature, operating hours, and the specific process application. 📞 Get the Right Industrial Vacuum Pump 🚀 If you are searching for an Industrial Vacuum Pump manufacturer, Vacuum Pump supplier, Vacuum Pump exporter, Oil Sealed Vacuum Pump manufacturer, Rotary Vane Vacuum Pump supplier, Water Ring Vacuum Pump manufacturer, Water Ring Vacuum Pump supplier, industrial vacuum system manufacturer, or Vacuum Pump exporter in India, ALPHA GLOBAL offers application-focused vacuum solutions. 📋 Share your required vacuum level, pumping capacity, gas or vapour type, temperature, moisture load, operating conditions, and application with ALPHA GLOBAL to select the appropriate vacuum pump configuration. 🏭 ALPHA GLOBAL – Reliable Industrial Vacuum Pump Solutions for Rough Vacuum, Medium Vacuum, Filtration, Distillation, Dehydration, Moisture Extraction and Process Applications.
